Polarization Maintaining Fused Coupler
Part No.: PMTC-22-1064-50-3.0x45-PM980-1-0-N-F
u Specification:
Parameters | Unit | Values |
Structure | / | 2*2 |
Center Wavelengthλc | nm | 1064 |
Operating Wavelength Range | nm | ±10 |
Coupling Ratio | % | 50/50 |
Excess Loss | dB | ≤0.5 |
Polarization Extinction Ratio | dB | ≥20 |
Min. Return Loss | nm | ≥50 |
Max. Average Optical Power | mW | ≤500 |
Max. Tensile Load | N | 5 |
Fiber Type | / | PM980 bare fiber |
Fiber Length | m | 1±0.1 |
Connector | - | N/A |
Package Dimension | mm | 3.0X45 |
Operating Temperature | ℃ | -5 to +75 |
Storage Temperature | ℃ | -40 to +85 |
*Values specified are without connector loss. IL will be higher, RL and ER will be lower with connectors.
*The PM fiber and the connector key are aligned to the slow axis, fast axis is blocked.

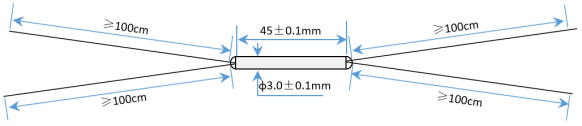

u Package Dimension:
u Ordering Information
PMTC-①-②-③-④-⑤-⑥-⑦-⑧-⑨
① Structure | ② Center Wavelength | ③ Coupling Ratio | ④ Package Dimension | ⑤ Fiber Type | ⑥ Fiber Length | ⑦ Fiber Jacket | ⑧ Connector | ⑨ Working Axis |
22-2X2 | 1030-1030nm | 10-10/90 | 5.5*35mm | PM980-PM980 | 0.8-0.8M | 0-Bare Fiber | N-None | F-Fast Axis Blocked |
12-1X2 | 1064-1064nm | 20-20/80 | S-Specify | PM1550-PM1550 | 1-1M | 1-900μm Loose Tube | FU-FC/PC | B-Both Axis Working |
1550-1550nm | 50-50/50 | S-Specify | S-Specify | 2-2mm Cable | FA-FC/APC | S-Slow Axis Blocked |
